Hand Walking Tractor Mini Self Walking Maize Harvester Corn Harvester Cheapest price

  • 1 - 14 Sets
    $700.00
  • >=15 Sets
    $480.00
Model Number:
4SD-1
Lead Time:
Quantity(Sets) 1 - 2 3 - 10 >10
Est. Time(days) 10 15 Negotiable
Contact Supplier
Loading...
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 years
Type:
Mini Harvester
Dimension(L*W*H):
920*670*620mm
Condition:
New
Drive Type:
Gear Drive
Usage:
Corn Harvester
Place of Origin:
Henan, China
Brand Name:
Sincerely
Weight:
90KG
Certificate:
CE
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Overseas service center available
Name:
Maize Harvester
Power:
8.82kw
Matched tractor:
10-20HP walking tractor
Working width:
500-700mm
Knife shaft rotation:
2200r/min
Productivity:
0.1-0.2h m2/h
Min ground clearance:
70mm
Harvest lines:
1 rows
Engine type:
Diesel
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden case packing
Port
Qingdao port
Lead Time :
Quantity(Sets) 1 - 2 3 - 10 >10
Est. Time(days) 10 15 To be negotiated
Video Description

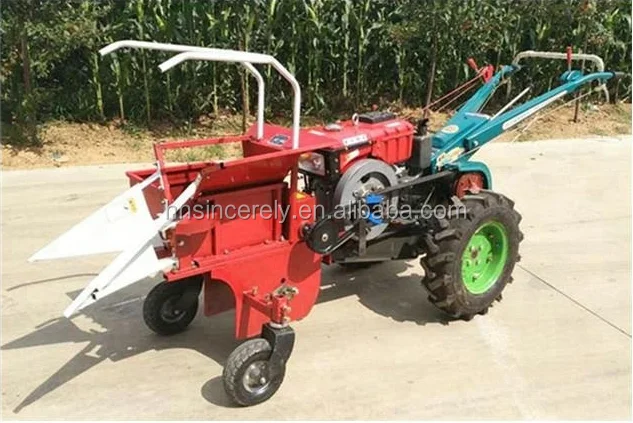

 Hand Walking Tractor Mini Self Walking Maize Harvester Corn Harvester Cheapest price



walking reaper corn harvester Features:



1: small size, adaptability, widely used in hills and mountains and other large corn harvesters can not pass the sporadic block

2: full-featured, picking crushed straw crushed into the field, etc., and almost the same function

and large corn harvester.

3: matching power, machine delivery.

4: easy to install and disassemble, really a car more use.

5: flexible operation, cutting crop height can be adjusted, turning radius is small



Technical parameter of walking reaper corn harvester:

Specifications for single row corn harvester
Product namecorn harvester
Model4YD-1
Structure(Self-propelled)picking, non-peeling, smashing
Engine modelZH192
Calibration power≥7.35kw
Calibration rotation2300r/min
Working rows1 row
Work width500-700mm
Min ground clearance70mm
Working speed2km/h
Productivity0.1-0.2h m2/h
Fuel consumption6.5kg/h m2
Dimensions920*670*620mm
Total Weight90kg
Supporting power8.82kw
Knife shaft rotation2200r/min
Trial sentence500-700mm
Remaining height20-80mm
Harvest lines1
Number of workers1
Number of blades24 pcs
Chopped length20-80mm
Picking structure Recumbent
Picking sizeL420mm H400mm
Track distanceGuide wheel580-680mm
Drive wheel680-740mm
Tire specificationsGuide wheel4.10/3.5-4mm
Drive wheel6.00-12mm









walking reaper rice harvester packing and shipping:
