High Efficiency Mining Machinery Hammer Crusher for Stone Working

FOB Reference Price:Get Latest Price
$1,999.00 - $2,500.00 / Sets | 1 Set/Sets (Min. Order)
Contact Supplier
Loading...
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Hammer Crusher
Application:
Ore
Motor Type:
AC Motor
Power(W):
75kw
Capacity(t/h):
50-100tph
Place of Origin:
Shanghai, China
Brand Name:
Clirik
Model Number:
PC
Dimension(L*W*H):
Specific Model
Weight:
15.5t
Certification:
ISO
Name:
Stone Crusher Machine
Product name:
Hammer Crusher
The Machines classification:
Mining Machinery
Color:
Customizable
Keyword:
Fine Stone Crusher
Installation:
Under Engineer's Guide
Spare parts supply:
Anytime
After sale Service:
Maintenance
Max feeding size:
200mm
Test&Installation:
Senior Professional Engineers Assigned
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 Year
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden box
Port
shanghai
Lead Time :
15-20 days

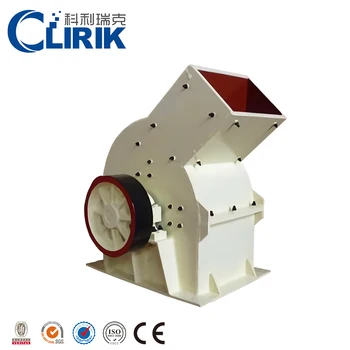

Introduction of High Efficiency Mining Machinery Hammer Crusher for Stone Working


Shanghai Clirik Machinery Co., Ltd is a large professional manufacturer of Hammer Crusher,The Clirik PC series Hammer Crusher have three models: PC400x300,PC600x400,PC800x600.
Clirik Machinery is a trusted and reliable brand for its high quality and good service. It specializes in producing hammer crusher which is widely used in mining, quarry, material handling. We have more than 20 years' experiences in manufacturing hammer crusher, jaw crusher, cone crusher, impact crusher and stone crusher.


Application of High Efficiency Mining Machinery Hammer Crusher for Stone Working

The Hammer Crusher  is one of the main equipment for intermediate and fine crushing the brittle materials such as limestone coal and other used materials in metallurgy, building material, chemical and water - power industry, with a feature of big crushing ratio and even product graininess.This machine can be used both dry and wet crushing of brittle, medium-hard materials for the mining, cement, coal, metallurgic, construction material, road building, and petroleum & chemical industries.

Advantages of High Efficiency Mining Machinery Hammer Crusher for Stone Working

1. Our Hammer Crusher  has relatively simple design and simple component replacement.
2. Our Hammer Crusher  has high capacity and lower power consumption.
3. Our Hammer Crusher  are easy operation and low investment.
Device of Hammer Crusher : Our Hammer Crusher  mainly consists of frame, rotor, support iron and grate bars.


Working Principle of High Efficiency Mining Machinery Hammer Crusher for Stone Working
In the Hammer Crusher  machine, the motor drives the rotor to rotate at a high speed through the belt, and on the rotor there are series of hammers. When the materials get into the working area of hammers, the rotating hammers with high rotation speed are crushing them. The crushed products meeting the required size can be discharged by the outlet and become the final products, while the large size products are brought back to the crushing area by the hammers for being re-crushed until they reached the required size.

Technology Data of High Efficiency Mining Machinery Hammer Crusher for Stone Working


ModelMax feed size (mm)Handling capacity (t/h)Handling capacity (t/h)Weight (t)Overall dimension(mm) (length*width*height)
PC400×3001005-10110.8812*982*785
PC600×40022010-25221.51055*1022*1122
PC800×60035025-50553.11360*1350*1020
PC800x80035025-70753.51440*1740*1101
PC1000×80040020-120907.82565*1720*2035





Our Company





SHANGHAI CLIRIK MACHINERY CO., LTD located in Pudong New District of SHANGHAI, CHINA as a pioneer enterprise, which is specializing in research, manufacture and sales of all kinds of mining equipment. Our company has already formed a full set of modern production line, equipped with intelligent, standardized testing and controlling laboratories, owned a professional team for R&D, production, sales and service.



FAQ



Q: What can your hammer crusher do?

A: Our hammer mill used for50 mesh to 300 mesh stone powder grinding.


Q: I need silica grinding mill, do you have?
A: Yes, we have designed and export many this kind mills, for quartz grinding, 30-3000 mesh, Fe free.

More information welcome to contact us online
